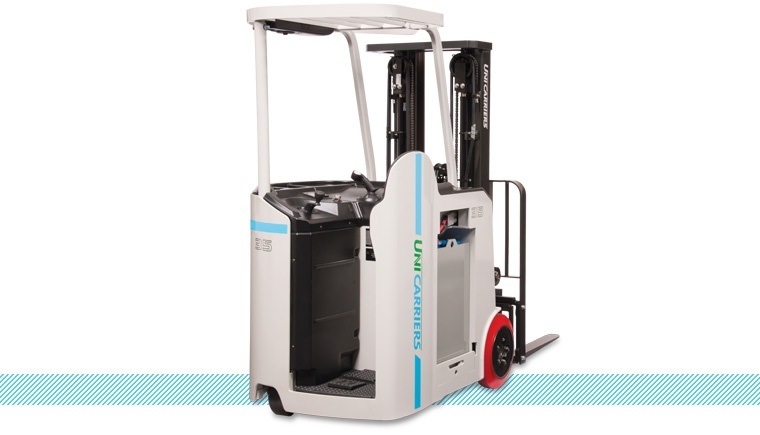

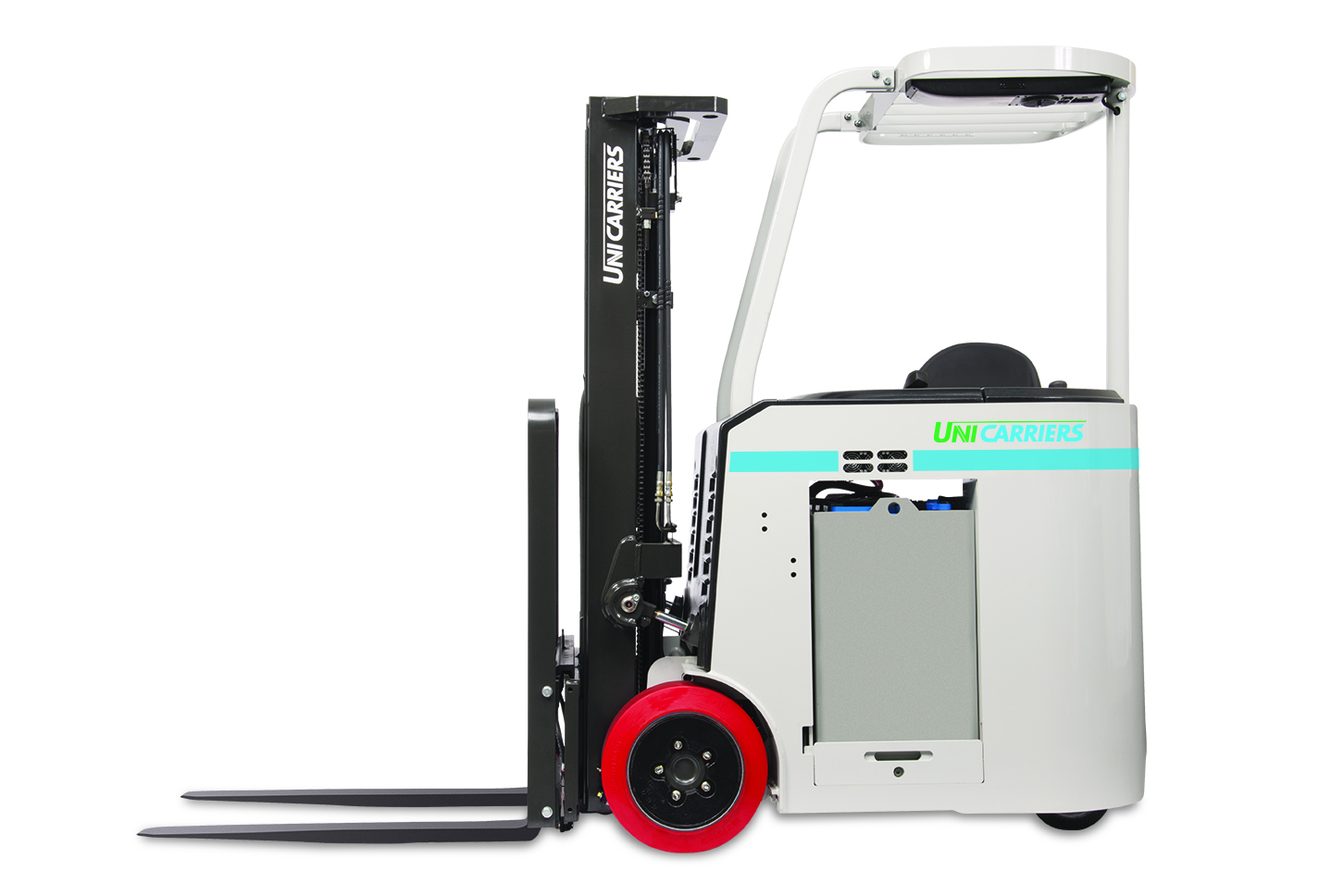

Platinum SCX Standup
Rated at 3,000–4,000 lbs
Applications: Shipping/Receiving, Manufacturing/Warehousing/Distribution, Food Products Companies, Warehousing Operations, Light Manufacturing, Trucking Operations
Up and down narrow warehouse aisles, in and out of trailers — the Platinum ® SCX Series combines extraordinary maneuverability with exceptional performance in a truck that’s both powerful and reliable. Specifically designed for applications that require operators to frequently get on and off of the truck, the SCX is loaded with ergonomic features that maximize operator comfort — and is ideal for a wide variety of applications, including freezers, coolers, pallet transfer and dock operations.
UniCarriers Advantages
100% AC brushless motor system includes hydraulic motor and dual drive motors
Precision tuned motors / controller
Meter panel to set performance parameters & access operating information
Five customized performance profile settings / PIN access
Built-in thermal sensors: soft mode auto speed reduction limits travel & tilt under certain driving conditions
Hall Effect sensors and encoders — plus magnetic reed switches and inductive proximity switches
State-of-the-art CAN-Bus Network continuously monitors truck performance
Shortest step height in the industry (8.4″) & wide compartment entry
Padded armrest, an extra tall 57″ backrest, super thick floor mat and optional kneepad
Platform vibration isolators to absorb shocks
Large 18″ drive tires
UniCarriers Exclusives
- Self-contained meter panel for displaying on-board diagnostics & setting performance parameters
- Multi-function control handle — drive, lift-and-lower, horn and auxiliary hydraulic functions
UniCarriers Features
Three pre-set operating modes
Auto self-check at start-up and during operation
Quiet, load sensing hydraulic power steering
Controlled rollback with ramp hold
Dual foot pedal design
Variety of options available for chassis, mast, and operator compartment
