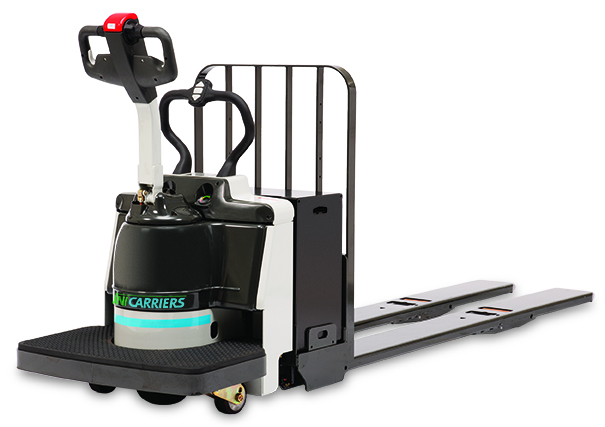

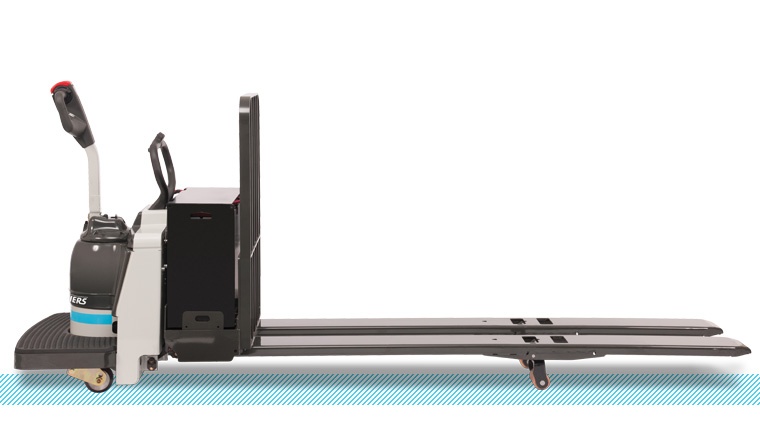

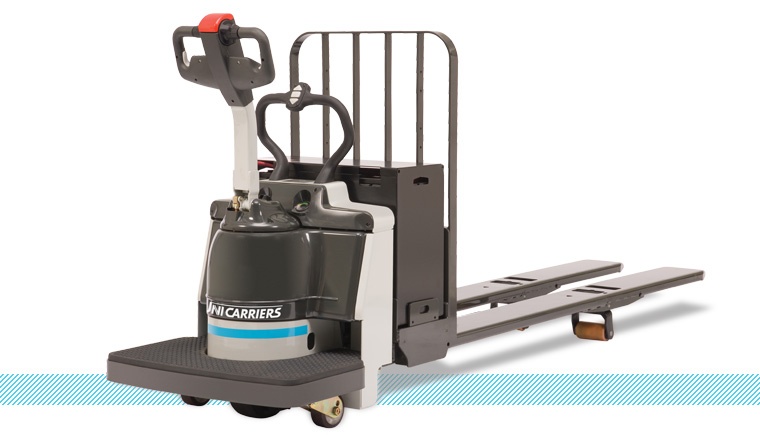

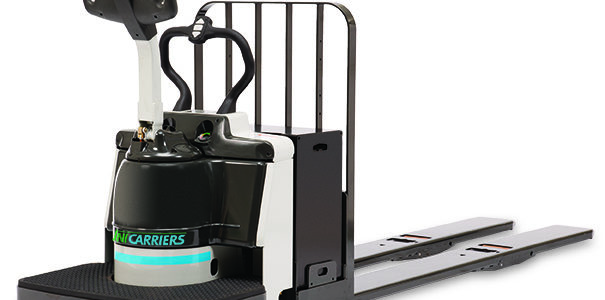

RPX Walkie/Rider Pallet Truck
Rated at 6,000 – 8,000 lbs.
Applications: Manufacturing, Warehousing; Flexible design allows use in various operating environments
Up and down crowded aisles, in and out of coolers & freezers, racing to and from the loading dock, stopping and starting — our Platinum Series Pallet Trucks are engineered to offer unmatched reliability and performance.
Superior maneuverability… maximum operator comfort… extraordinary durability… the RPX is designed to excel in all environments — from coolers and freezers down to -20°F (-28.9°C) to dry ambient environments. And, it’s built to deliver maximum uptime and the low cost of ownership of a UniCarriers forklift.
UniCarriers Advantages
Proven 5.2 HP brushless AC drive motor delivers greater torque and faster speeds
Simplified 4-wire Controller Area Network (CAN) system
Sealed switches and logic boards for operation in coolers, wet rooms, and freezers down to -20°F (-28.9°C)
A full 1900° steering range
Fingertip controls reduce operator fatigue and allow precise travel speed
Hall Effect speed and directional control eliminates potentiometers and heaters
Strong, reliable alloy steel reinforced fork tips
Tapered 1/4″ steel fork slides ensure smooth pallet entry/exit — eliminates the need for replaceable preload rollers
Push design lift linkage shields tie rods and improves ground clearance
Maintenance-free electronic horn
Large safety reversing button
UniCarriers Exclusives
- The largest operator platform in the industry
- Environmental package includes sealed switches, thermal cut-back and shut down, an epoxy coated control board, IP65 rated sealed controller, and sealed steer race
- Easily accessible maintenance points, including top-side grease fittings
- Low-maintenance, long-life load wheels with dual ball bearings
- Forks made of high quality, bend / crack resistant steel
- Heavy-duty, solid steel push rods never need adjusting
UniCarriers Features
Large control buttons mounted to a soft grip high speed handle
Multi-function LCD meter panel
Smart electric brake system eliminates adjustments
Multi-function digital indicator readout
Tubular steel constructed steer handle & ergonomic control head
Large platform area
String guard on all wheels
Fuel cell ready design
Optional equipment includes coast control, side-tracker, battery rollers, convenience tray and more
