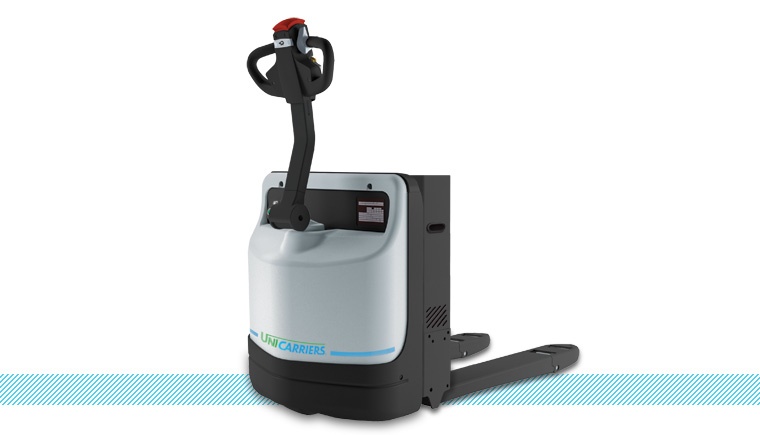

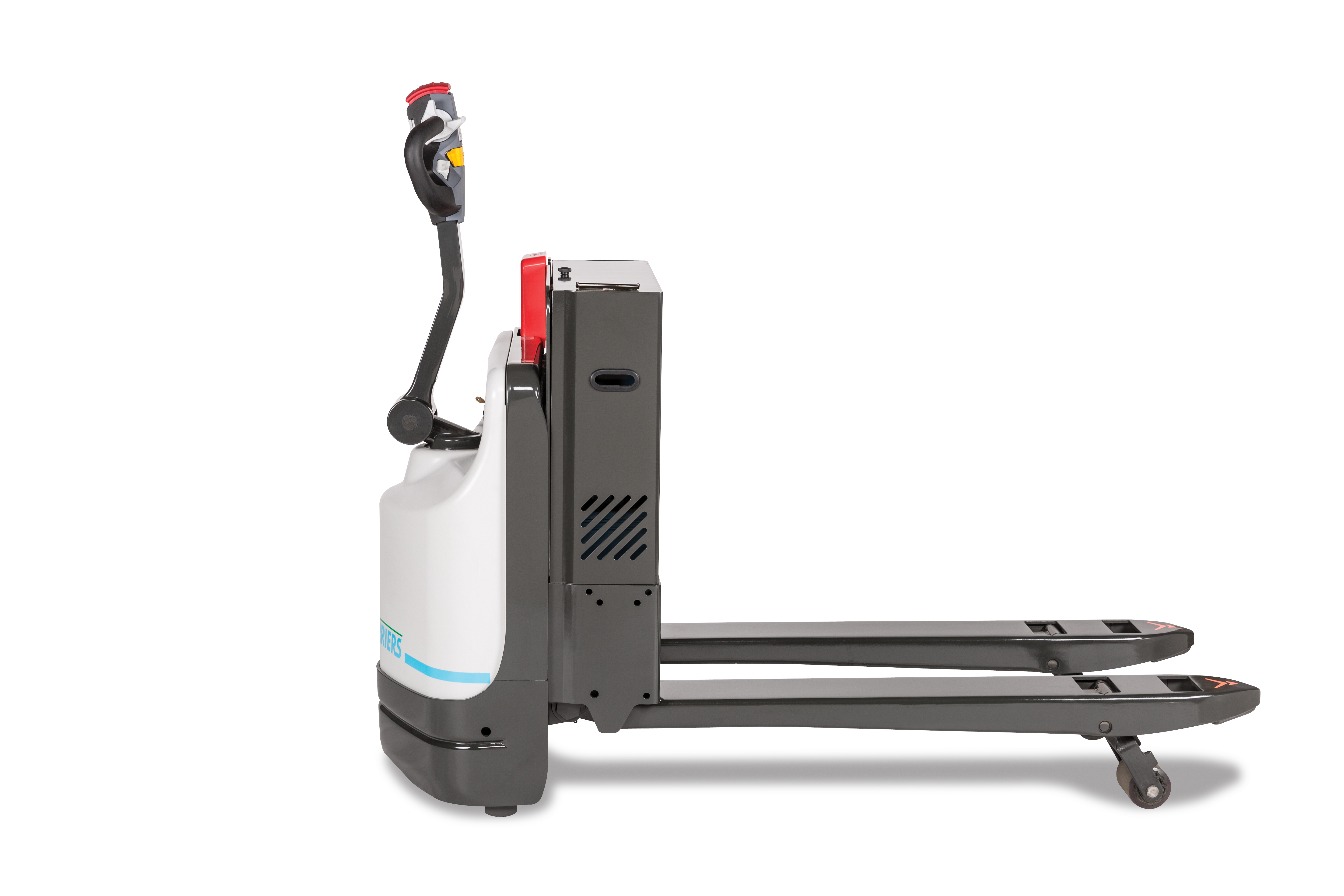

WLX Walkie Pallet Truck
Rated at 4,500 lbs.
Applications: Loading & Unloading Trailers, Supermarkets, Grocery Wholesalers, Warehousing, Bottling Operations, Department Stores
Loading and unloading trailers, in and out of coolers, up and down aisles — the WLX was designed from the ground up to provide industry-leading tight turning radius for faster, easier pinwheeling, more work cycles and better bottom-line productivity.
Beyond its superior maneuverability, the WLX offers advanced ergonomics to improve operator comfort…a robust iron cast frame for exceptional durability…extended service intervals and easily accessible components to minimize the time and cost of maintenance…and the reliability that has become the hallmark of every UniCarriers forklift.
UniCarriers Advantages
Heavy-duty hydraulic motor, pump and large reservoir
Fast lift speed — 2.4 seconds to a full 5.9” height
Fast loaded travel speed — 3.7 mph (6.0 kph)
Low, contoured, compact powerhead improves maneuverability and visibility to fork tips
Contoured, tapered, robust fork tips and slides for fast, easy pallet entry & exit — even at sharp angles
Simplified 4-wire Controller Area Network (CAN) system means fewer wires and connectors, greater reliability and less maintenance
IP65 rated controller protects against dirt and moisture
Sealed harness connectors, switches and logic boards for operation in environments down to -4°F (-20.0°C)
Extended service intervals, easily accessible service points and non-wear componentry improve uptime and reduce costs
Sealed, self-lubricating maintenance-free fiber bushings in all fork linkage pivot point.
UniCarriers Exclusives
A super-tight industry-leading turning radius provides exceptional maneuverability
A full 5.9” of lift provides more clearance for easily traversing dock plates, ramp angles and uneven floors
A central cast iron frame with integral lift cylinder provides strong support for motors and lift system
The unique push rod linkage design offers superior protection against possible damage
Maintenance-free steel push rods eliminate the adjustment required by pull-rod designs
UniCarriers Features
The brushless AC drive motor uses fewer components and requires less maintenance for reduced operating costs
24 V electrical system, AC controller and drive system provide quick acceleration, smooth variable travel speeds and increased run times
Tiller-up drive switch overrides the brake and engages creep speed for precise load positioning and pinwheeling with the handle in the vertical position
Superb low-end torque for excellent gradeability and improved productivity
Ergonomically designed tiller handle operating ranges are optimizes for various sized operators
Smart Brake System — regenerative braking optimizes braking performance and reduces component wear
Tie rods require no field adjustments
External diagnostic port located for easy laptop access
Single-piece cover provides quick access to components
