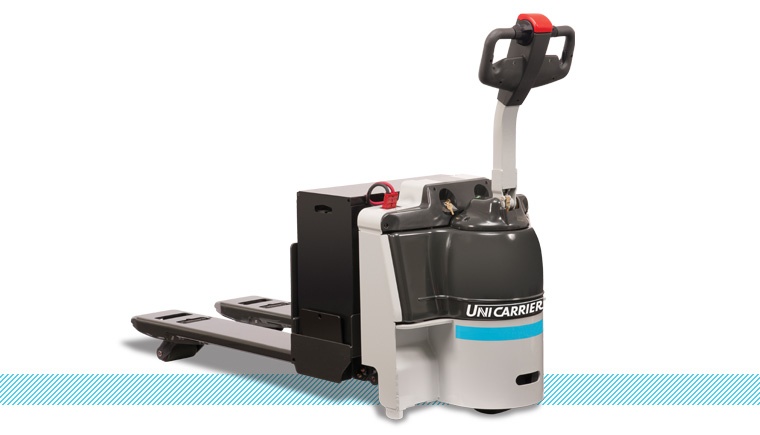

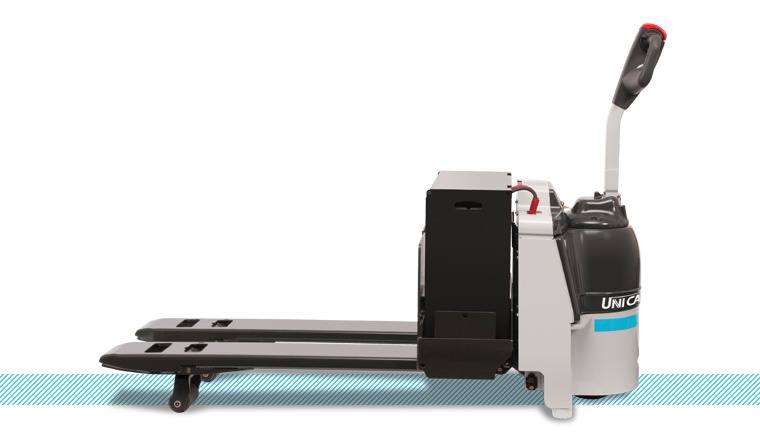

WPX Walkie Pallet Truck
Rated at 6,000 – 8,000 lbs.
Applications: Manufacturing, Warehousing; Flexible design allows use in various operating environments
Built to be extremely durable and designed for easy service, the WPX provides you with the uptime performance you need to maximize productivity. Add an array of ergonomic features, exceptional maneuverability and a full menu of customizable options and you have the ideal solution for warehousing, grocery, manufacturing — or any application and environment where a walkie is required.
UniCarriers Advantages
Proven 5.2 HP brushless AC drive motor delivers greater torque and faster speeds
Simplified 4-wire Controller Area Network (CAN) System
Sealed switches and logic boards for operation in coolers, wet rooms, and freezers down to -20°F (-28.9°C)
A full 1900° steering range
Fingertip controls reduce operator fatigue and allow precise travel speed
Hall Effect speed and directional control eliminates potentiometers and heaters
Strong, reliable alloy steel reinforced fork tips
Tapered 1/4″ steel fork slides ensure smooth pallet entry/exit — eliminates the need for replaceable preload rollers
Push design lift linkage shields tie rods and improves ground clearance
Maintenance-free electronic horn
Large safety reversing button
UniCarriers Exclusives
Environmental package includes sealed switches, thermal cut-back and shut down, an epoxy coated control board, IP65 rated sealed controller, and sealed steer race
Easily accessible maintenance points, including top-side grease fittings
Low-maintenance, long-life load wheels with dual ball bearings
Forks made of high quality, bend / crack resistant steel
Heavy-duty, solid steel push rods never need adjusting
UniCarriers Features
Multi-function LCD meter panel
Smart electric brake system eliminates adjustments
Multi-function digital indicator readout
Tubular steel constructed steer handle & ergonomic control head
String guard on all wheels
Fuel cell ready design
Optional equipment includes coast control, side-tracker, battery rollers, convenience tray and more
